Sheet Metal Machines
Home > Products > Sheet Metal Machines

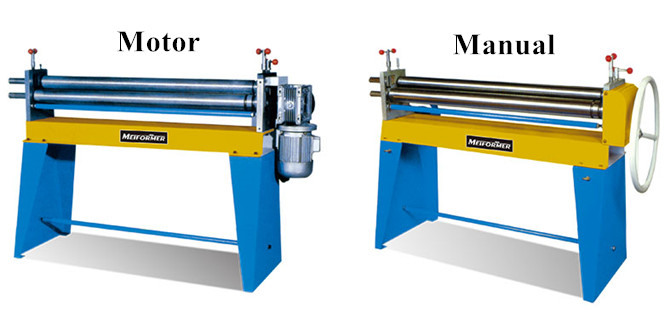

Asymmetrical 3 roller bending Machine
Asymmetrical 3 roller bending Machine, Have pre-bending function, the upper roller can be lifted easy for taking out the material out convenient. Operation simply. Base on customer’s different request, we can especially design for customer. So it will have more function in one machine.
There have two choice base on different drive, see below.
Manual Asymmetrical 3 roller bending
Model
Roller Diameter
Max Thickness (mm)
Max Width (mm)
Weight (kw)
Dimension (mm)
MSW-2X750A
62
2
750
105
1160X570X670
MSW-1.5X1000
62
1.5
1000
120
1500X570X670
MSW-1.2X1250
62
1.2
1250
140
1720X570X740
Motor Asymmetrical 3 roller bending
Model
Roller Diameter
Max Thickness
Max Width
Power
Weight
Dimension (mm)
MDW-2X750A
62
2
750
0.75
120
1160X570X670
MDW-1.5X1000A
62
1.5
1000
0.75
140
1500X570X670
MDW-1.2X1250A
62
1.2
1250
0.75
160
1720X570X740
MDW-1.2X1500A
62
1.2
1250
0.75
160
1900X570X740
(mm)
(mm)
(kw)
(kw)
